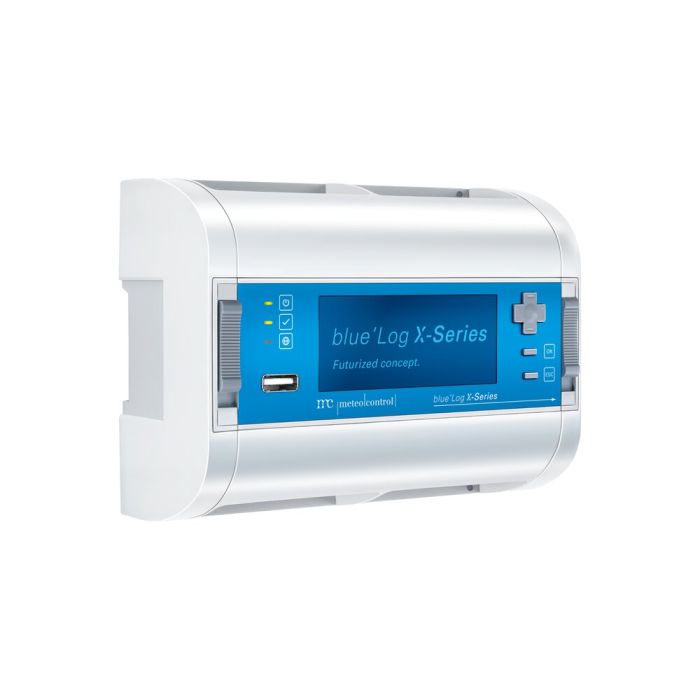

blue'Log XC-1000
plant controller
Article number
532021
Availability of this item
Detailed information:
The blue’Log X-series data loggers comprehensively record key metrics from your renewable energy plant. They also provide various interfaces and functionality for power plant control, thus serving as the central component for grid-compliant feed-in. When used in conjunction with VCOM, the blue'Log transmits all recorded data to the cloud monitoring platform for in-depth analysis.
| Weight | 0,63 kg |
|---|---|
| Length | 146 mm |
| Width | 63 mm |
| Height | 110 mm |
| Manufacturer | meteocontrol GmbH |
| Power consumption | Typically 5 W; max. 80 W; incl. MX expansion modules |
| Type of installation | Top-hat rail |
| Protection rating | IP20 |
| Operating temperature | -20 °C ... 75 °C |
| ESD protection | Geprüft nach DIN EN 61000-4-2 (4 kV Kontaktentladung; 8 kV Luftentladung) |
| Power supply | 24V DC |
| Maximale AC Wirkleistung der Anlage | ≤ 1000 kW |
| Licence type | X-Control |
| Type | Description | Language | File type |
|---|
